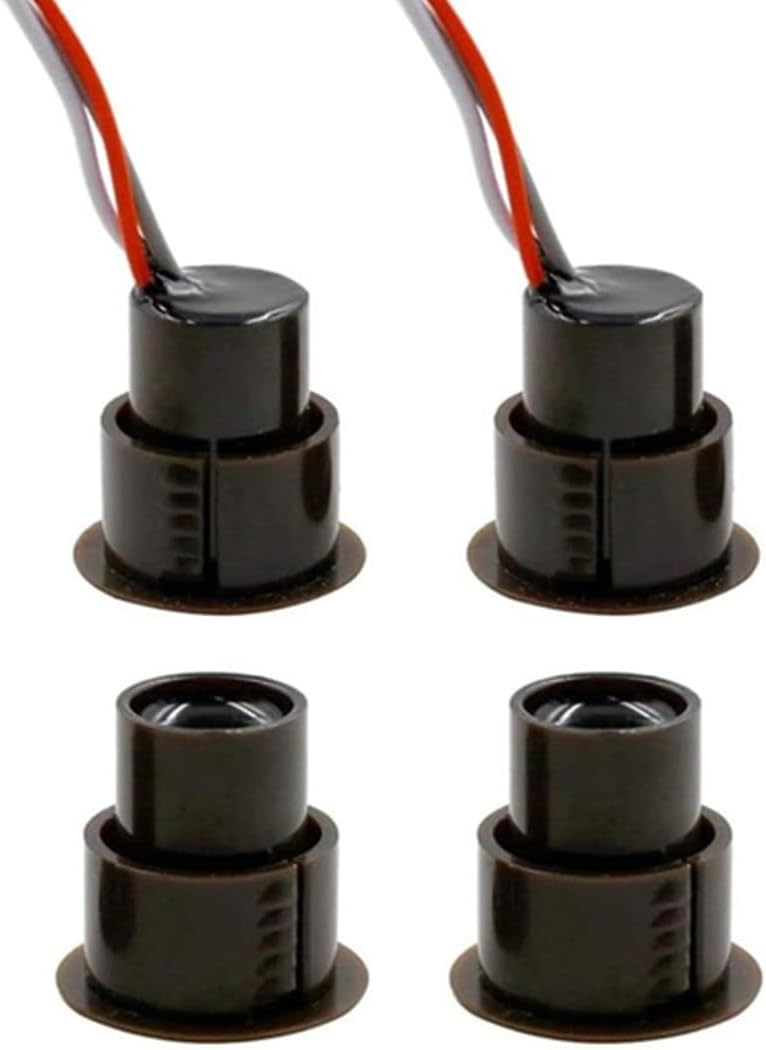

2 Sets Magnetic Reed Switch RC-36 NC+NO Recessed Security Window Door Contact Sensor Alarm Magnetic Reed Switch

Feature: NC means Normally Closed: When the magnet together, the circuit is conductive( light on ); when the magnet separates, the circuit is not conductive ( light off ). NO means Normally Open: when the magnet separates, the circuit is conductive( light on ); When the magnet together, the circuit is not conductive ( light off ). When make order, pls check carefully Specification: Model: RC-36 Voltage: DC 100V Rated Power: 10W Cable Length: 25cm/9.8" Actuation Distance: 15-20mm Mounting Type: Recessed Product Name: Magnetic Door Switch Contact Capacity: 0.5A(Maximum Switch Current) Cable definition: White Wire = Common, Gray Wire = Normally Closed, Red Wire = Normally Open Package Content: 2 x Magnetic Reed Switches Installation Instructions: 1. Drill the installation hole accordiong to the diameter. 2. The door and window magnet should be installed at the closed position of the door/window/drawer. 3. The magnet part is installed in the movable door and window. The switch part is installed in the fixed door and window frame. The switch part and the magnet part should be aligned as much as possible. 4. The door magnet should be away from the strong magnetic field interference source such as a transformer. Otherwise, the working characteristics of the door magnet will be changed and possible wrong actions.

• Package Content: 2 x Magnetic Reed Switches .Mounting Type: Recessed; Model: RC-36;
• Designed for use with alarm systems. Widely used in security window door cabinet contact.
• Contact Capacity: 0.5A(Maximum Switch Current); Voltage: DC 100V; Rated Power: 10W; Actuation Distance: 15-20mm
• NC&NO Combined: Use Normally Open or Normally Closed freely. Cable definition: White for common; Red for NO; Gray for NC.
• NOTE: Door magnetic induction can only provide a switch signal, which can not directly load the power, nor directly connect the lamp!
